rfnetwork

Linear circuit solver for networks of RF components.

Github Repository

Installation

rfnetwork requires Python >= 3.9.

pip install rfnetwork

To build from source on Windows or Linux,

If building from source, a C++ compiler must be available on the system. On Windows systems the recommended compiler is the MS C++ Build Tools .

nvcc must be present if compiling the GPU accelerated solver. The CPU solver will still compile if nvcc is not found, but the GPU solver will not be available.

Features

• Simulate networks of linear components with hierarchical building blocks.

• Compute noise figure of multi-port networks.

• Interactive tuning of variable components (i.e. switches, phase shifters, capacitors).

• Supports internal voltage probes inside a network.

• GPU accelerated FDTD solver.

Examples

Below is a gallery of examples

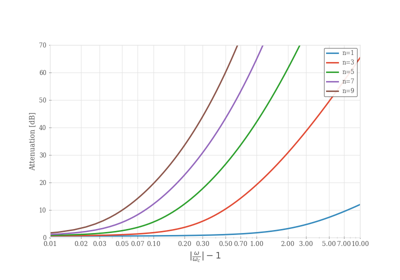

Filters

Filters

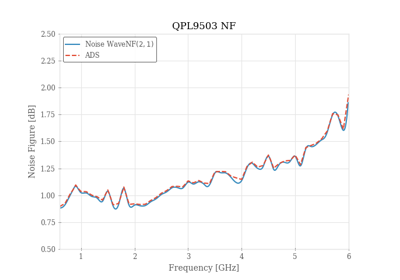

Noise Figure

Noise Figure

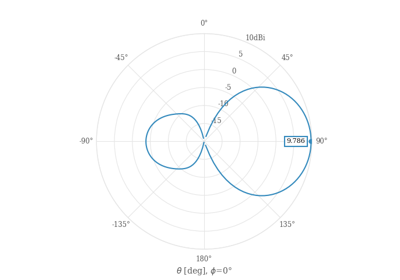

Yagi Antenna

Yagi Antenna

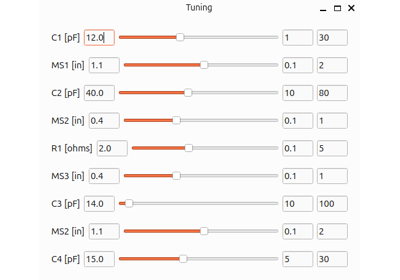

Interactive Tuning

Interactive Tuning

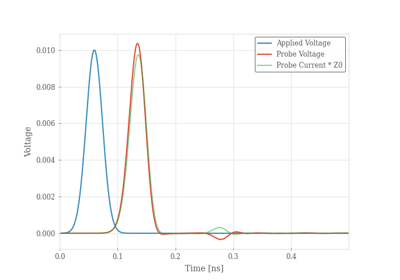

Microstrip Line

Microstrip Line

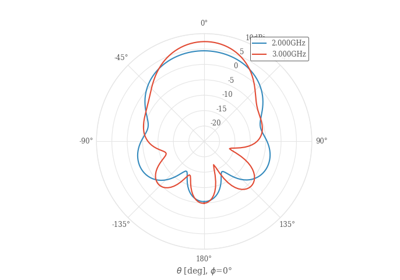

Vivaldi Antenna

Vivaldi Antenna

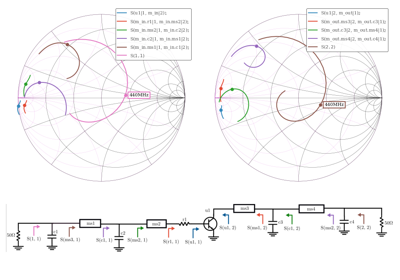

Network Probes

Network Probes

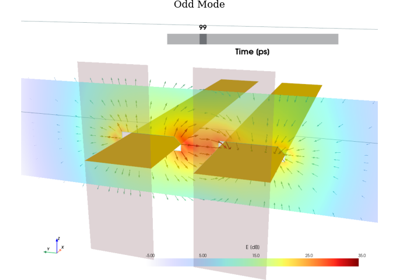

Coupled Stripline

Coupled Stripline

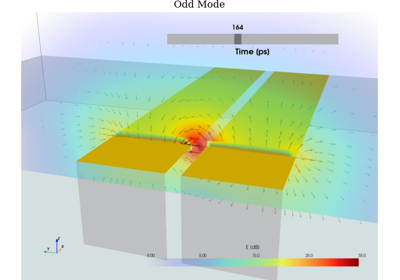

Coupled Microstrip Lines

Coupled Microstrip Lines

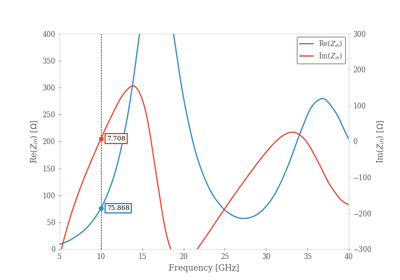

Dipole Antenna

Dipole Antenna

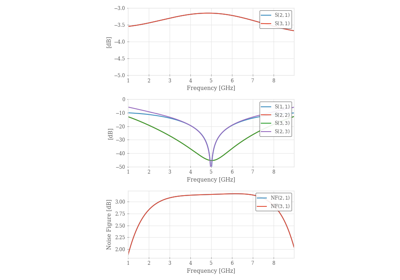

Combiners

Combiners

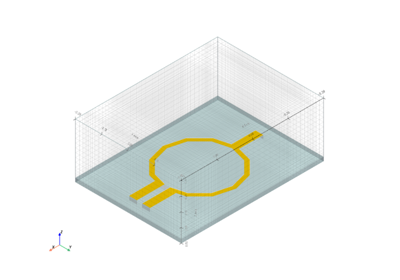

Wilkinson Combiner

Wilkinson Combiner

Dual-Polarized Patch Antenna

Dual-Polarized Patch Antenna

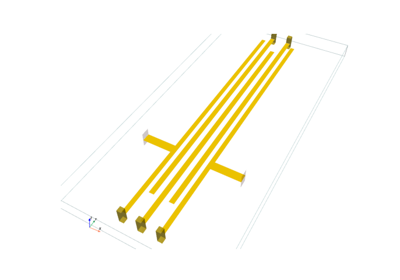

Combline Filter

Combline Filter

API Reference

rfnetwork.component
rfnetwork.elements
rfnetwork.network.Network([shunt, passive, ...])	Network of multiple components.
rfnetwork.solver.FDTD_Solver(bounding_box)	FDTD EM Solver for PCB geometries.
rfnetwork.plots.plot(axes, sdata, *paths[, ...])	Plots s-matrix or noise figure data over frequency.
rfnetwork.utils
rfnetwork.core.units.const()	Physical Constants.
rfnetwork.core.units.conv()	Unit conversion functions.
